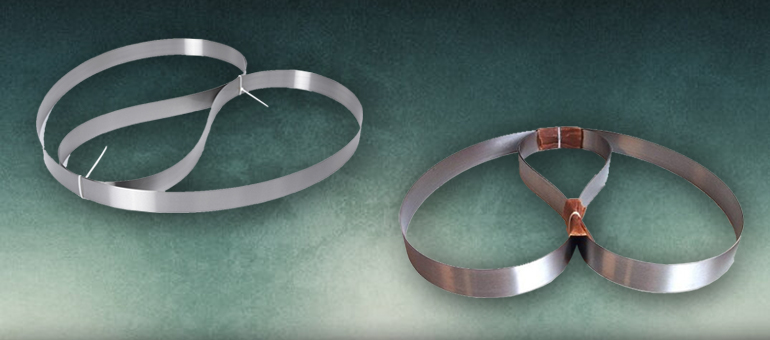

Splitting Band Knives (or Band Knives or Band Knives or Splitting Blade) are extensively used in tanneries, footwear and leather goods, paper, cork, foam, textile, rubber, EVA, laminate and other allied industries of soft sheet material. It is a sharp, precision, factory consumable item and operates on a Splitting Machine with the blade mounted on two wheels on either side of it. The blade is kept in place with roller inserts and supported on guides. The Splitting blade is used to split or divide materials to its desired thickness. Various sizes of splitting band knives are manufactured as per specification of different splitting machines and machine manufacturers. Various raw materials of varied chemical composition are used to manufacture these blades based on the material to be split and the usage conditions in which the blades will operate.
Established in 2019, has years of experience in fabricating Splitting Band Knives of the highest standard and quality. Ultimate customer satisfaction is a passion that drives us to produce Band Knives which withstand the test of time and endurance as they continuously split various materials on diverse machines in complex user environments.
The best steel from renowned European mills are used to manufacture our Splitting Band Knives to customized composition and specification, guaranteeing the unmatched pedigree of every piece manufactured.
Computer controlled technology and state of art precision machines ensure consistent quality, optimum hardness, nil vibration, lowest tolerance and longer knife life.
The blades are processed by technically sound technicians with years of in-depth experience in this process under expert supervision. Rigorous checking and testing is undertaken to ensure that the end product shipped to our customers exceed international standards.
We manufacture Splitting Band Knives of various length, width and thickness to be used in various industries. Production is customized to client specifications also.
| Range of Splitting Band Knives by Kartikey International | |||
| Minimum | Maximum | Tolerance | |
| Length (or circumference) | 2000mm | 14000mm | +/- 5mm |
| Width | 8mm | 100mm | +/- 1mm |
| Thickness | 0.40mm | 1.30mm | +/- 0.01mm |
The hardness of the steel of the Splitting Band Knives range from 45HRC to 50HRC to facilitate easy splits and is a function of material density, environment and usage.
The blades are endless and joint free. Welding by automated European machines that ensure the quality of weld. Precise balancing of front and back edges ensures smooth running of the blade without any to and fro oscillation that might ruin the leather and the blade. It further ensures, minimum grinding which in turn increases knife life and minimises frequent blade change. Precise grinding of top and bottom surfaces ensures vibration-free running, clatter-free and perfectly even splits.
Our blades are optimised for smooth running and lowest cost per split. Each blade is fabricated keeping in mind the material to be split, the machine and user environment.
Pre-sale consultation and post-sale service coupled with a wide distribution network enables us to supply our products to customers across the globe with great ease. Shipments are dispatched by air, sea, rail or road cargo as per customer requirements and volume of orders. Intense focus on customer satisfaction is assured for hassle free purchase and service experience of our global clientele.
Our blades are backed by a 100% guarantee against any manufacturing defects. We are committed to our tradition of commitment and trust built over years with our industrial clientele across the world.
Splitting Band Knives for tanneries are designed and manufactured to run smoothly in harsh environments. The bandknives ensure the uniformity and quality of grain, splits and sub-splits is maintained throughout the operation.
| Application in Tanneries | ||||
| Lime Splitting | Wet Blue Splitting | Wet White Splitting | VT Splitting | Dry Splitting |
Our Splitting Band Knives run consistently on local as well as in splitting machines made by renowned manufacturers like Alpe, Alpespak, CSM, Linta, Mercier, Mosconi, Poletto, Rizzi, Svit, Turner et al.
Splitting Band Knives, fabricated for tanneries are manufactured according to specific length(mm) as per the understated width(mm) and thickness(mm). However, customised dimensions as per requirement can also be fabricated and delivered immediately to anywhere across the world.
| Specification of Splitting Band Knives for Tanneries | ||||
| Thickness | ||||
| Width (mm) | 0.80 mm | 0.90 mm | 1.00 mm | 1.20 mm |
| 70 mm | 70 x 0.80 | 70 x 1.00 | 70 x 1.20 | |
| 75 mm | 75 x 0.80 | 75 x 1.00 | 75 x 1.20 | |
| 80 mm | 80 x 1.00 | 80 x 1.20 | ||
| 85 mm | 85 x 0.9 | 85 x 1.00 | 85 x 1.20 | |
| 90 mm | 90 x 1.20 | |||
| 95 mm | 95 x 1.20 | |||
| 100 mm | 100 x 1.20 | |||
Splitting Band Knives for footwear and leather goods demands high degree of precision and accuracy as the companies work on finished leather. Our bandknives ensure the finesse to achieve such high levels of perfection and craftsmanship.
| Application in Footwear | ||||
| Uppers | Insoles | Linings | Soles | Counters |
| Application in Leather Goods | ||||
| Bags | Wallets | Belts | Cases | Apparel |
| Upholstery | Furniture | Folders | Equestrian | Pet Care |
| Automobile | Bikes | Covers | Fashion | Accessories |
Our Splitting Band Knives run smoothly on splitting machines made by renowned manufacturers like Albeko, Atom, Camoga, Ellegi, Fortuna, Omsa, Quanyi, Sagitta, Svit, et al.
Splitting Band Knives, fabricated for footwear and leather goods are manufactured according to specific length(mm), as per the understated width(mm) and thickness(mm). However, customized dimensions as per requirement can be fabricated and delivered to your doorstep.
| Range of Splitting Band Knives for Footwear and Leather Goods | |||||
| Thickness | |||||
| Width | 0.45 mm | 0.50 mm | 0.60 mm | 0.70 mm | 0.80 mm |
| 40 mm | 40 x 0.45 | 40 x 0.50 | 40 x 0.60 | ||
| 50 mm | 50 x 0.60 | 50 x 0.70 | 50 x 0.80 | ||
| 60 mm | 60 x 0.80 | ||||
Splitting Band Knives for paper industry is a precision blade used to render quality finished products. Accuracy and vibration-free running is a major requisite for these splitting band knives. Our bandknives ensure quality is maintained during the operation.
| Application in Paper Industry | ||||
| Tissue Paper | Rolls | Paper Napkins | Reels | Handkerchiefs |
Our Splitting Band Knives run smoothly and consistently on local as well as in splitting machines made by renowned manufacturers like Birla Hitech, Futura, Kenji Paper, Omet, SKE, Vision Paper et al.
Splitting Band Knives, fabricated for paper are manufactured according to specific length(mm) as per the understated width(mm) and thickness(mm). However, customized dimensions as per requirement can also be fabricated and delivered immediately to anywhere across the world.
| Range of Splitting Band Knives for Paper Industry | ||||||
| Thickness | ||||||
| Width | 0.60 mm | 0.70 mm | 0.80 mm | 0.90 mm | 1.00 mm | 1.20 mm |
| 40 mm | 40 x 0.60 | 40 x 0.70 | ||||
| 50 mm | 50 x 0.60 | 50 x 0.8 | ||||
| 80 mm | 80 x 1.00 | |||||
| 85 mm | 85 x 0.90 | 85 x 1.00 | 85 x 1.20 | |||
| 90 mm | 90 x 1.20 | |||||
| 100 mm | 100 x 1.20 | |||||
Splitting Band Knives are used in cork industries to split thick sheets, blocks or cylinders into fine sheets or rolls of varying thicknesses. As they work on the finished product high degree of accuracy is needed for these band knives. Edge retention, longer knife life and lowest cost per split are the main factors that gives our blades an edge over competition.
| Application in Cork | ||
| Blocks | Sheets | Cylinders |
Our Splitting Band Knives run smoothly and consistently on local as well as in splitting machines made by renowned manufacturers like Baumer, Jian Yi, Gibitre, Sunkist, Fecken Kirfel, DMT, Nanjing et al.
Splitting Band Knives, fabricated for cork industry are manufactured according to specific length(mm) as per the understated width(mm) and thickness(mm). However, customized dimensions as per requirement can also be fabricated and delivered immediately to anywhere across the world.
| Range of Splitting Band Knives for Cork | ||||
| Thickness | ||||
| Width | 0.60 mm | 0.90 mm | 1.00 mm | 1.20 mm |
| 40 mm | 40 x 0.60 | |||
| 80 mm | 80 x 1.00 | 80 x 1.20 | ||
| 85 mm | 85 x 0.90 | 85 x 1.00 | 85 x 1.20 | |
| 90 mm | 90 x 1.20 | |||
| 95 mm | 95 x 1.20 | |||
| 100 mm | 100 x 1.20 | |||
Splitting Band Knives are extensively used in foam industries to split thick sheets, blocks or cylinders into fine sheets or rolls of varying thicknesses. They are used in both horizontal and vertical machines to split, slice and peel. As they work on the finished product high degree of accuracy is needed for these band knives. Edge retention, longer knife life and lowest cost per split are the main factors that gives our blades an edge over competition.
| Application in Foam | ||
| Blocks | Sheets | Cylinders |
| Types of Machines for Foam Industry | ||||
| Vertical Foam Cutting Machines | Horizontal Foam Cutting Machines | |||
| Block Slicing Machine | Circular Cutting Machine | Peeling Machine | Guillotine Cutting Machine | CNC Contour Cutting Machines |
Our Splitting Band Knives run smoothly and consistently on local as well as in splitting machines made by renowned manufacturers.
Splitting Band Knives, fabricated for foam industry are manufactured according to specific length(mm) as per the understated width(mm) and thickness(mm). However, customized dimensions as per requirement can also be fabricated and delivered immediately to anywhere across the world.
| Range of Splitting Band Knives for Foam | |||||
| Thickness | |||||
| Width | 0.45 mm | 0.50 mm | 0.60 mm | 1.00 mm | 1.20 mm |
| 8 mm | 8 x 0.45 | ||||
| 10 mm | 10 x 0.45 | ||||
| 12 mm | 12 x 0.45 | ||||
| 15 mm | 15 x 0.45 | ||||
| 20 mm | 20 x 0.45 | 20 x 0.60 | |||
| 25 mm | 25 x 0.45 | 25 x 0.50 | 25 x 0.60 | ||
| 30 mm | 30 x 0.45 | 30 x 0.50 | 30 x 0.60 | ||
| 35 mm | 35 x 0.50 | 100 x 1.20 | |||
| 40 mm | 40 x 0.50 | 40 x 0.60 | |||
| 50 mm | 50 x 0.60 | ||||
| 90 mm | 90 x 1.00 | ||||
| 100 mm | 100 x 1.20 | ||||
Splitting Band Knives are used in industries dealing with rubber, EVA, laminate and soft sheet material to split thick sheets, blocks or cylinders into fine sheets or rolls of varying thicknesses. These band knives work in extreme temperatures and environmental conditions. As they work on the finished product and laboratory equipments high degree of accuracy is needed for these band knives.
| Application in Rubber, EVA, Laminate and Soft Sheet Materials | ||
| Blocks | Sheets | Cylinders |
Our Splitting Band Knives run smoothly and consistently on local as well as in splitting machines made by renowned manufacturers like Baumer, Jian Yi, Gibitre, Sunkist, Fecken Kirfel, DMT, Nanjing et al.
Splitting Band Knives, fabricated for rubber, EVA, laminate, soft sheet material industry are manufactured according to specific length(mm) as per the understated width(mm) and thickness(mm). However, customized dimensions as per requirement can also be fabricated and delivered immediately to anywhere across the world.
| Range of Splitting Band Knives for Rubber, EVA, Laminate and Soft Sheet Materials | ||||
| Thickness | ||||
| Width | 0.60 mm | 0.90 mm | 1.00 mm | 1.20 mm |
| 40 mm | 40 x 0.60 | |||
| 80 mm | 80 x 1.00 | 80 x 1.20 | ||
| 85 mm | 85 x 0.90 | 85 x 1.00 | 85 x 1.20 | |
| 90 mm | 90 x 1.20 | |||
| 95 mm | 95 x 1.20 | |||
| 100 mm | 100 x 1.20 | |||
